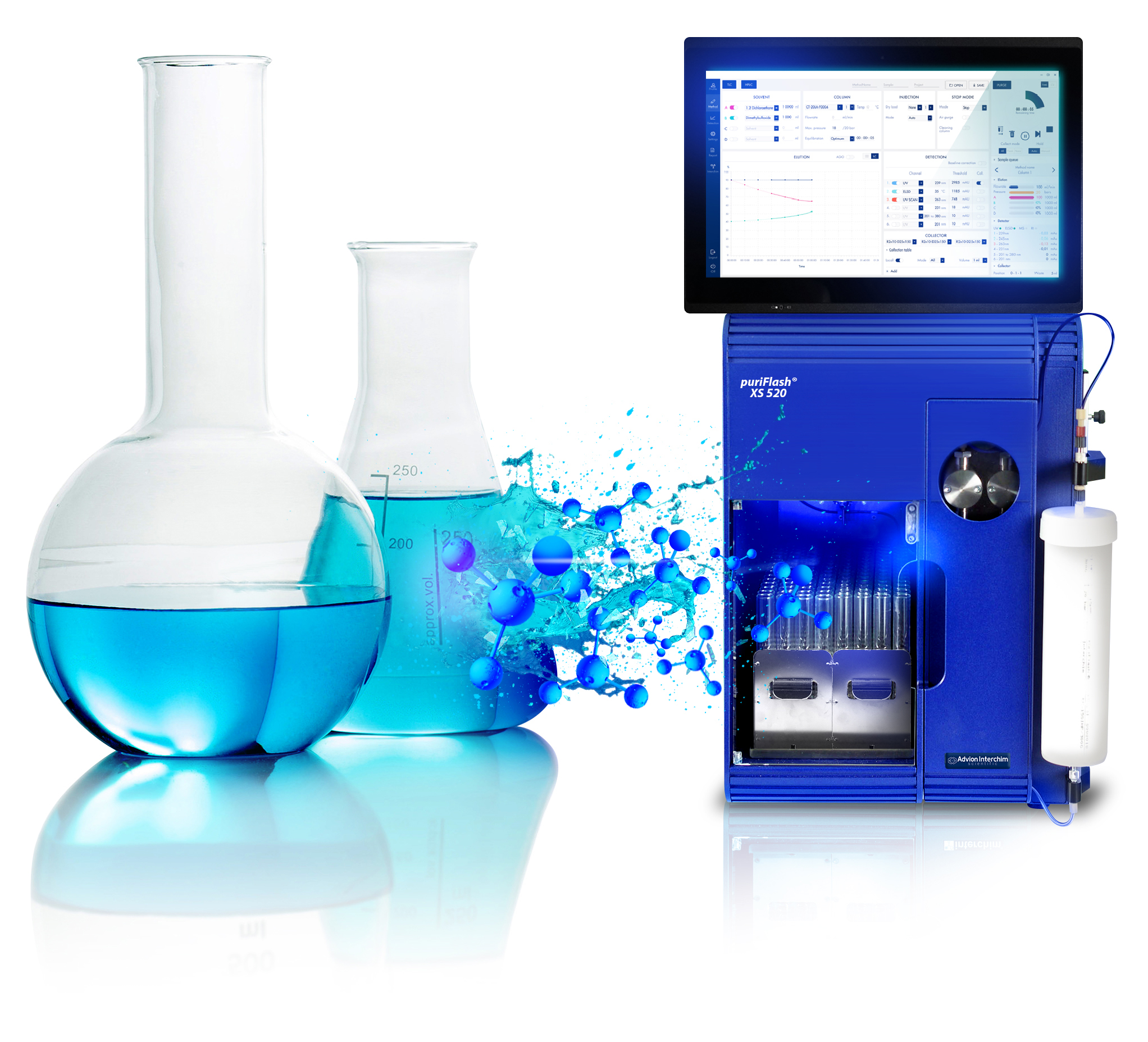

XS-520-Configurator
Routine Flash purification puriFlash XS 520 Plus

Configure your puriFlash® XS 520 Plus

Optimized for your routine Flash purification

Routine Flash purification puriFlash XS 520 Plus interchim
Flow
300 mL/min
Routine Flash purification puriFlash XS 520 Plus interchim
Max. pressure
20 bar

Basic configuration

  • Components
    • Control unit
    • Pump
    • UV detector
    • Fraction collector
    • Solvent tray with drainage system
    • Integrated column holder
    • Stainless steel needle with connection (54 mm)
    • Accessories box
  • .
  • Pump
    • Max. operational flow rate: 300 mL/min
    • Optimum flow rate for columns up to F0800 format
    • Max. operational pressure: 20 bar
    • Quaternary gradient valve
    • Air purge
  • .
  • Injection
    • Injection mode: liquid or solid
      “Load & Go” technology: staggered Dry-Load for even more efficient injections automated via a 4 ports electric valve (included in the Pack_Ultra)
  • .
  • Detection
    • UV detector 200-400 nm or 200-800 nm (included in the Pack_Ultra or in the Pack_UVextended)
    • “DAD” technology
    • Multi-wavelength and scan collection over band of 200 nm (or 600 nm with the Pack_UVextended or the Pack_Ultra)
    • Spectral visualization and confirmation of purity
    • Flow cell pathway: 0.3 mm / 40 µL
  • .
  • Column and holder compatibility
    • Normal phase (NP)
      Particle sizes: 15 µm, 25 μm, 30 μm, 40 μm, 50 μm
    • Reverse phase (RP)
      Particle sizes: 15 µm, 30 μm, 50 μm
    • Format: all Flash columns up to F0330 format are compatible
    • Integrated column holder
  • .
  • Fraction collector
    • Content:
      – 2 long racks
      – 112 test tubes (18 x 150 mm)
    • Technology:
      Automatic cleaning of the fraction collector needle (to avoid cross-contamination with the previous purification)
  • .
  • Recommended racks
    Delivery includes 2 racks to choose from the list below:
    • Rack for test tubes:
      13 x 73 mm | 13 x 100 mm | 16 x 150 mm
      18 x 150 mm | 21 x 150 mm | 25 x 150 mm
      28 x 150 mm | 29,5 x 200 mm
      – Rack for 250 mL Schott bottles
  • .
  • Software and control unit
    • Control via InterSoft® X software included:
      – Genius, Artificial Intelligence
      – “Flash & Go”™ technology: compatible with our smartphone app “TLC to Flash & Prep”
      – “Boost & Go”™ technology
    • Windows 10
    • Remote control
    • Touchscreen 15″
    • 6 USB ports
    • 4 RS232 ports
    • 1 RJ45 port
    • Bluetooth/Wi-Fi
  • .
  • System optimization
    • Tubing after pump: 1.6 mm internal diameter
    • Flow cell pathway: 0.3 mm / 40 µL
  • .
  • Safety
    • Solvent tray with drainage system
    • Retention tray in the pump
    • Retention tray with drainage system in the fraction collector
    • “Fume Enclosure” technology (allows the use of the purification system without a hood)
  • .
  • Communication
    • Communication cable Sub-D9 male/female
    • Communication cable Sub-D9 female/female

Choose your options
