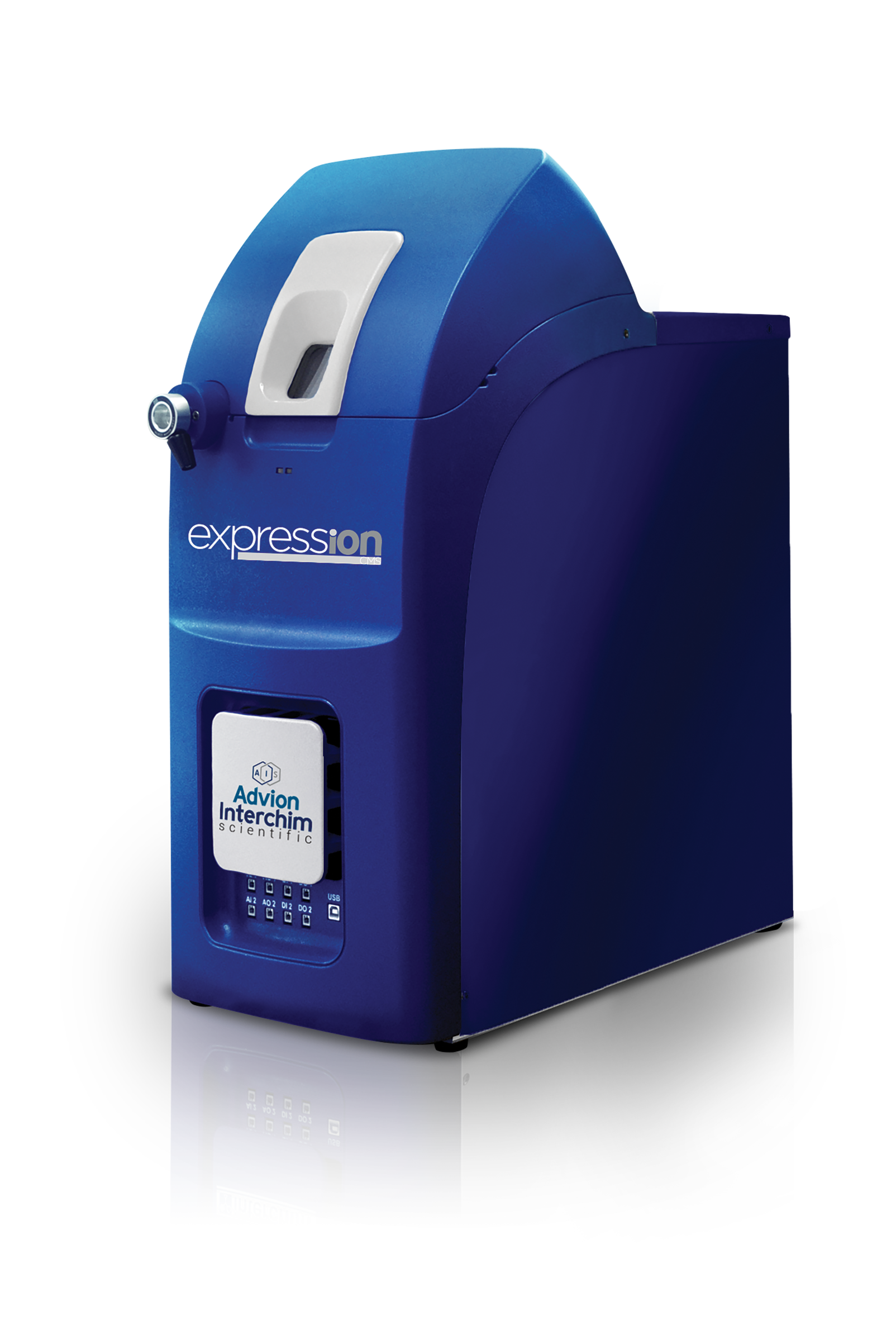

expression® CMS
expression® CMS
High performance compact mass spectrometer
Specifications
- m/z Range:
– expression S m/z 10 to 1,200
– expression L m/z 10 to 2,000
Ion Source : ESI, APCI or APCI/ASAP
Polarity: Positive & negative ion switching in a single analysis
Flow Rate Range:
– ESI: 10 μL/min to 1 mL/min
– APCI: 10 μL/min to 2 mL/min
Acquisition Speed: 10,000 m/z units/sec
Sensitivity:
– (ESI) 10 pg reserpine (FIA – 5 μL injection at 100 μL/min) 100:1 S/N (RMS) with
– SIM of m/z 609.3.
Accuracy: +/- 0.1 m/z units of the entire acquisition range
Stability: 0.1 m/z u at m/z 1,200 over 12 h period at operating temperature of 20°C +/- 1°CPolarity Switching Speed: 50 ms
Dynamic Range: 4.5 orders of magnitude
System/Space Requirements
- Gas Supply: 60 psi, >98% pure Nitrogen
Gas Consumption: < 10 L/min
Solvents: LC/MS-grade solvents
Line Voltage: 100 – 240 VAC
Line Frequency: 47 – 63 HZ
Power Consumption: 915 VA (including PC)
Temperature: 21°C +/- 3°C +/- 1°C for optimal performance
Storage & Transport Temp: -20°C to +60°C
Software
Mass Express
A user-friendly, intuitive software platform for instrument control and data acquisition
Data Express
A full feature data processing package to interpret and present mass spectral and chromatographic information in the clearest form using the fewest possible steps.
CheMS
The CheMS user interface allows users to quickly select the workflow and type of compound they wish to analyze in just a few clicks of the mouse, automatically optimizing the ion source and data acquisition parameters.
• Single click an instrument icon to set-up, and switch between, a range of sample introduction techniques
• Simplified interpretation of mass spectra with automatic identification of peaks related to your compound of interest
• Works alongside Mass Express for fully capable and versatile instrument control and data processing
Minimum Computer Specifications
- Operating System Windows 10 and 11 – 64 bit operating systems.
Processor Intel i3 or greater Intel CPU or AMD equivalent
Memory 8 GB
Hard Disk >200 GB Hard Drive
Display Minimum screen size of 1366 x 768 pixels
Ports 4 USB 2.0 (USB Hub is acceptable)
RJ45 port for Ethernet (or additional USB to RJ45 converter
Power supply
- 110 V or 220 V
Dimensions & weight
- Dimensions: (H x W x D) 26 x 11 x 22 in (66 x 28 x 56 cm)
Weight : 70 lb (32 kg)
