Detectors UV-Vis purification

Spotlight on your compounds.

With the TLC-FlashReader your compounds will never go undetected again! Robust and compact, it allows to visualize directly your compounds on the TLC plate thanks to its 3 embedded lights and its high resolution camera. Our TLC plate reader is driven by an ultra-intuitive software to guarantee you a comfort of work and a daily saving of time. Its operation is so simple: Forget your pencils, slide your TLC plate in its drawer and trust our algorithms to recognize your compounds.

A TLC plate reader that has a lot under the (small) hood !

The TLC-FlashReader has been specially designed to occupy a minimal space on the bench (width 17 cm x depth 22 cm x height 32 cm) but a maximal one in your laboratory life! It allows to accept TLC plates of 8,5 cm width and 12,5 cm height max. and embeds with it 3 lights : white light, UV 254 nm & UV 366 nm as well as a high resolution camera.

Mass spectrometers puriFlash MS apci
archive-visualiser-transferer@2x

PLUG & PLAY

Take advantage of the numerous functionalities of your TLC plate reader without waiting. The TLC-FlashReader can be set up and used in a few seconds to provide you with an immediate comfortable working environment and save time every day.

Insert your CCM plate and let the magic happen.

but also archive, view your old plates, transfer your data to Genius…
archive-visualiser-transferer@2x

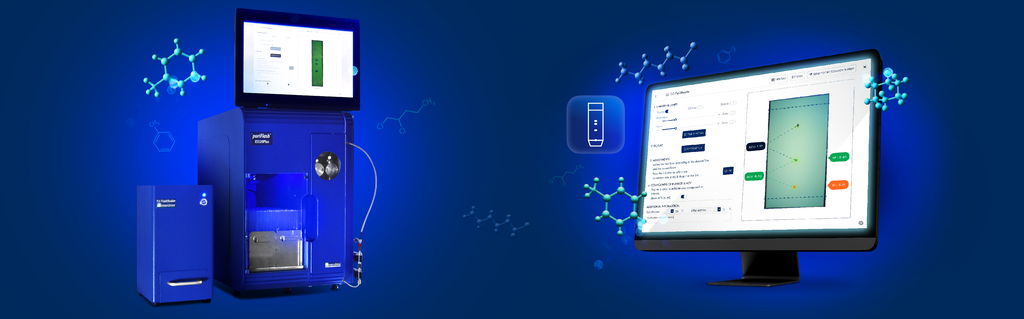

Solo or part of the puriFlash® family? The choice is yours.

The TLC-FlashReader has the advantage of being able to be used alone, but can also be coupled with our entire range of 5th generation puriFlash® systems with InterSoft® X software. And because “familia is sacred”, the ” sibship ” mode will offer you unequalled benefits. An example? With one click, you can transfer your data directly to Genius, which will recommend the best possible purification method in an instant. Haven’t heard of Genius and its Flash&Go? We guarantee you won’t be able to live without it anytime soon. In the meantime, you can learn more about this feature here.
tlc-ecran
Calque-1-Bandelette
Calque-2-Bandelette
Calque-3-Bandelette(1)
Calque-4-Bandelette
Calque-5-Molecules
Calque-6-Molecules
archive-visualiser-transferer@2x

“Flash&GO”: What if you switch to automatic mode?

If our teams of specialists have spent hours making the use of the TLC Flash-Reader extremely intuitive and user-friendly, it’s so that you can obtain results in a few seconds. Challenge accepted and achieved. It will go fast, so fast, that we would like to take the time to detail its functioning:
Ecran-tlc

Step 1

TLC to Flash & Prep Chromatography application

Just drag your plate into the drawer or import an old photo from your library.

TLC to Flash & Prep Chromatography application

Choose with which wavelength you want to highlight your compounds.

TLC to Flash & Prep Chromatography application

Make some adjustments if you want or use the automatic mode and take your picture.

TLC to Flash & Prep Chromatography application

Trimming and rotation are done automatically.

Step 2 : Automatic

TLC to Flash & Prep Chromatography application

Let our unique and proprietary algorithms detect your compounds, as well as the deposition line and solvent front if the later one is visible.

TLC to Flash & Prep Chromatography Interchim

With high accuracy the software calculates for you the Rf and ΔCV. In one tap, indicate your compounds of interest.

TLC to Flash & Prep Chromatography Interchim

If you want, indicate the solvents, their proportions and your comments in the dedicated area.

Step 3 : Optional

TLC to Flash & Prep Chromatography purification

Do you have a puriFlash® gen5? 🙂
Pass the relay to Genius (via InterSoft X) and it will propose the best purification method thanks to a direct and fast transfer of your TLC plate and its data to your puriFlash®.

Step 4 : Optional

TLC to Flash & Prep Chromatography purification

Need a report? The TLC-FlashReader will integrate your data directly into it.
Need a souvenir photo? You can also archive your TLC plates and integrate them into your lab's electronic notebook.

The TLC-FlashReader is at your side, from A to Z, during your purifications:

Whatever your field of activity (research, development, quality control, process…), the TLC-FlashReader will become an essential instrument in your laboratory. The TLC-FlashReader has been designed to be much more than a simple TLC plate reader! This is why it also allows the archiving of your TLC plates of your crude sample, the confirmation of your collected fractions as well as their integration in the electronic notebook of your laboratory.

Mass spectrometers puriFlash MS apci
Mass spectrometers puriFlash MS apci

Rather synthesis? The TLC-FlashReader also accompanies you during your reaction monitoring!

To follow the progress of your synthesis, our TLC plate reader will be the ideal companion! Indeed, its versatility will also offer you the possibility to visualize and archive your TLC plates used during the reaction monitoring.

To be dazzled yes, but only by technology. Last but not least, Safety first.

Safety has obviously not been forgotten in the design of your CCM plate reader with an automatic switch-off of the lamps when the drawer is opened, protecting the user against UV radiation.

Detectors UV-Vis chromatography
Ultra-Compact : width 17 cm x depth 22 cm x height 32 cm
Routine Flash purification puriFlash XS 520 Plus interchim
Maximum size of plates allowed : Width 8.5 cm x height 12.5 cm
Routine Flash purification puriFlash XS 520 Plus interchim
3 lights : White, UV 254 nm & UV 366nm
Detectors UV-Vis chromatography
Controlled by the TLC-FlashReader software
Routine Flash purification puriFlash XS 520 Plus interchim
Multi-functions: Visualization and archiving of TLC plates and integration into the electronic laboratory notebook
Routine Flash purification puriFlash XS 520 Plus interchim
Stand-alone use or compatible with all puriFlash® gen 5 for direct transfer to Genius

And what if it’s time to be breath-taken ?
